Bluetooth 4.2 & 5.0 Low Energy Development/ Evaluation Kit, EVK-CC2640

  • Bluetooth 4.2 & 5.0 Low Energy Development/ Evaluation Kit, EVK-CC2640
    UPC : 698545366004
    EAN : 0698545366004
    USD 42.9

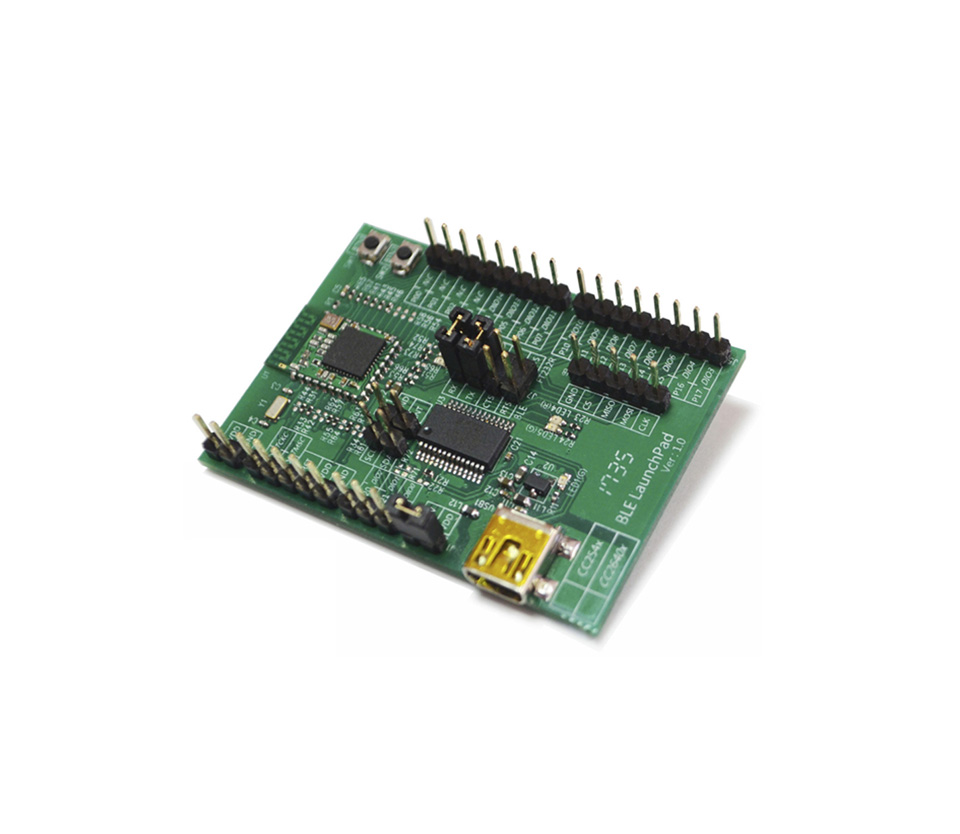

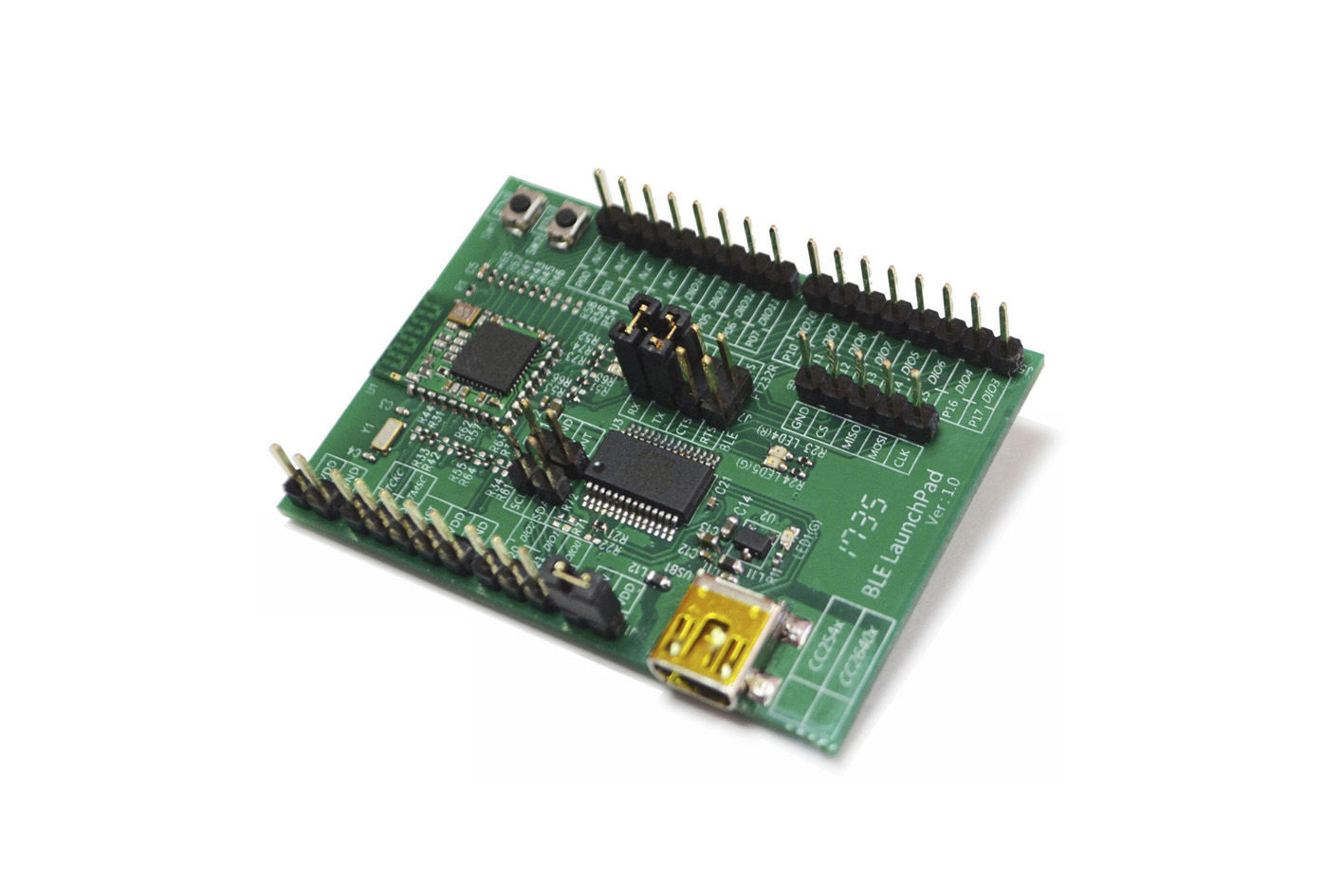

    EVK-CC2640, BLE 4.2 & 5.0 LaunchPad/ Development Kit, is an entire development kit for user to design Bluetooth Low Energy (BLE) application. It contains a Bluetooth module BT03-1 using TI Bluetooth low energy controller CC2640R2F. TI CC2640R2F is a world-leading chip in Bluetooth Low Energy 4.2 & 5.0 and offers variety of peripherals such as UART, SPI, I2C and Timer. EVK-CC2640 also embeds a famous FTDI FT232R USB-UART interface chip, a High-PSRR 300mA LDO, Buttons and LEDs. The LaunchPad can let user focus on their project development and verify the project easily and rapidly.

    Product Information

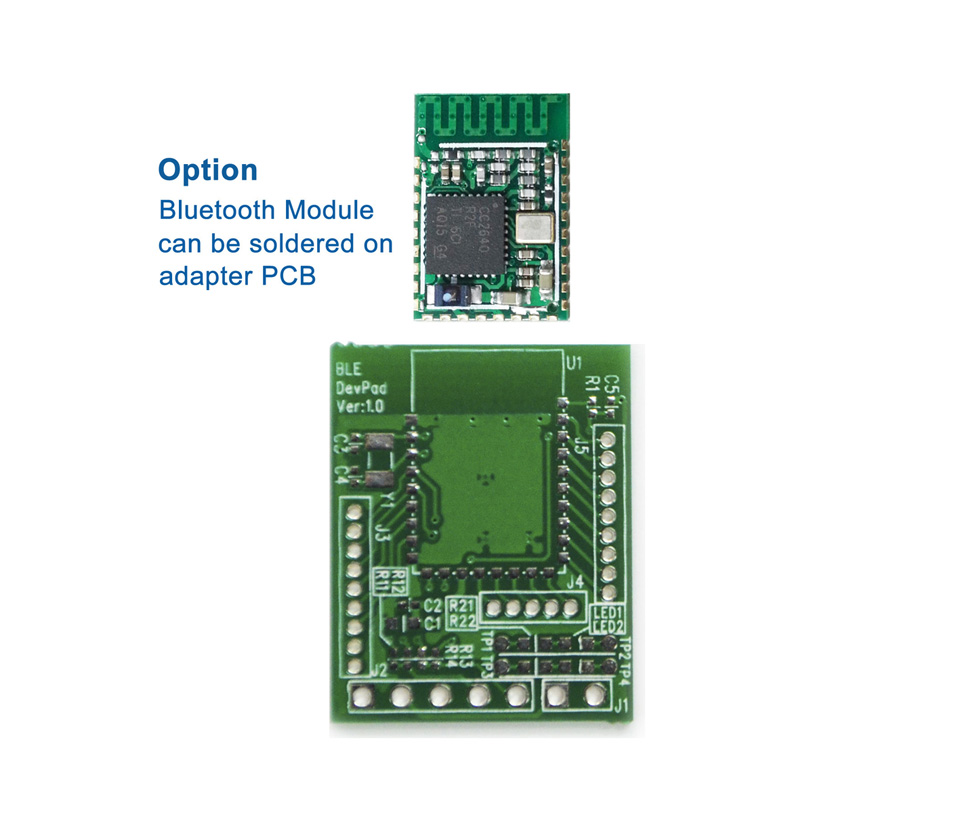

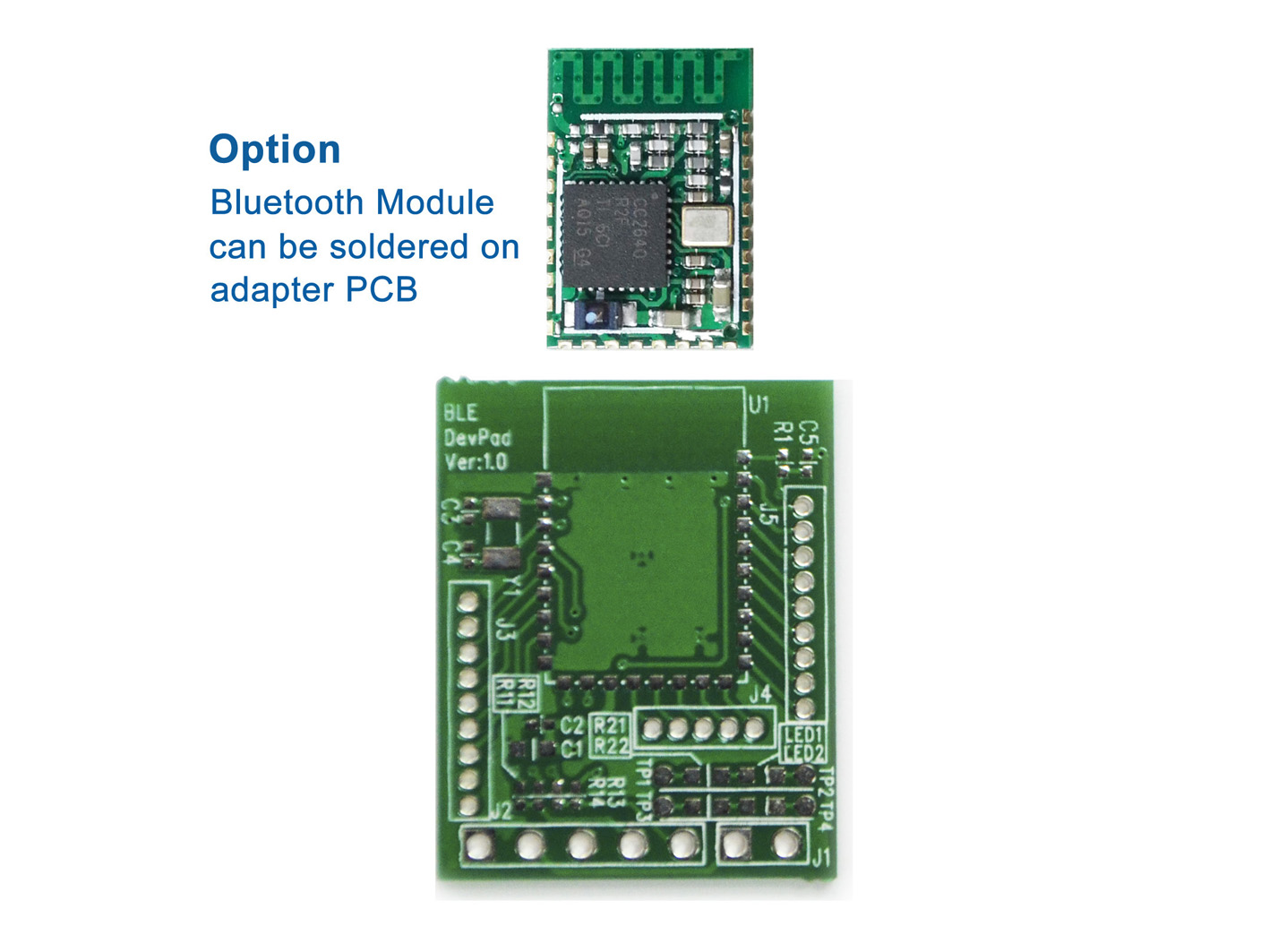

    BT03-1 Bluetooth Module with TI CC2640R2F
    • Bluetooth version 4.2 & 5.0 low energy (LE, single mode) compliant
    • High-performance and low-power 8051 Microcontroller core with code prefetch
    • In-system-programmable flash
    • 12-Bit ADC with eight channels and configurable resolution
    • 21 general purpose I/O
    • I2C interface
    • Power USARTs with support for several serial protocols
    • Module dimension: 0.58 inch x 0.39 inch/ 14.8 x 10mm

    FTDI FT232R
    • USB 2.0 Full Speed compatible
    • Entire USB protocol handled on the chip. No USB specific firmware programming required
    • FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases
    • Data transfer rates from 300 baud to 3M baud (RS422, RS485 and RS232) at TTL levels
    • Transmit and receive LED drive signals
    • UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
    • Alternative Jumper Design to use the function of FT232R independently
    • USB 2.0 Full Speed compatible

    LDO
    • Fast Ultra High-PSRR, Low-Noise 300mA CMOS LDO
    • 3.3V Output Voltage

    Mini USB Type B Connector
    • To PC communication
    • Supply Main Power

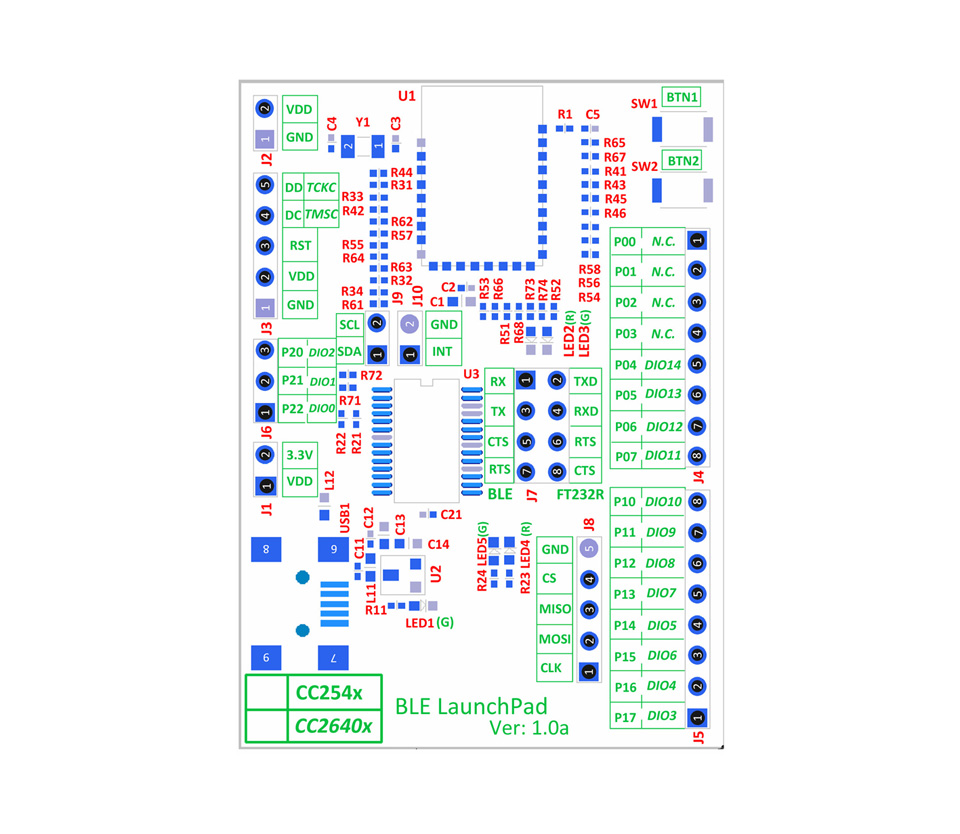

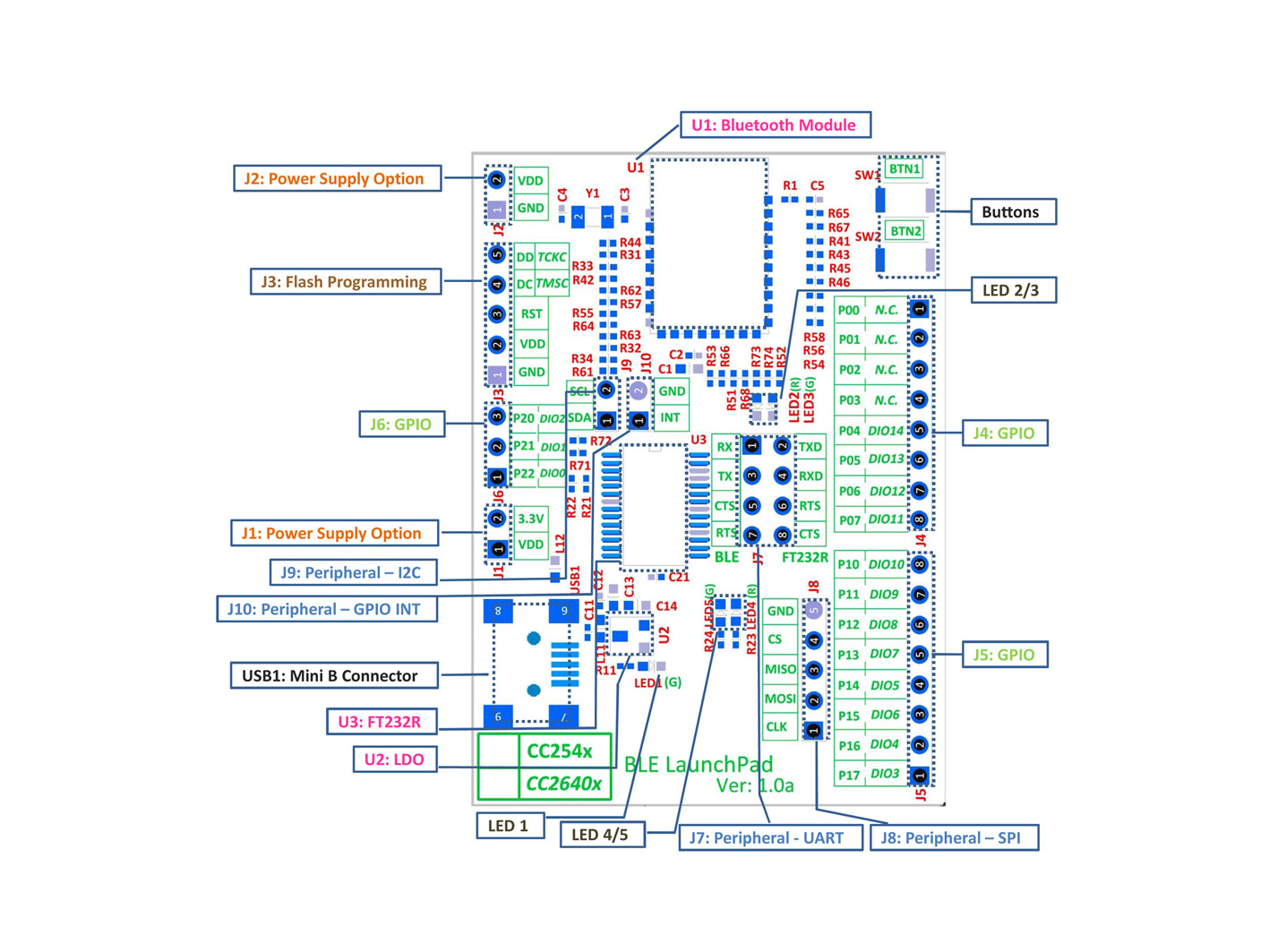

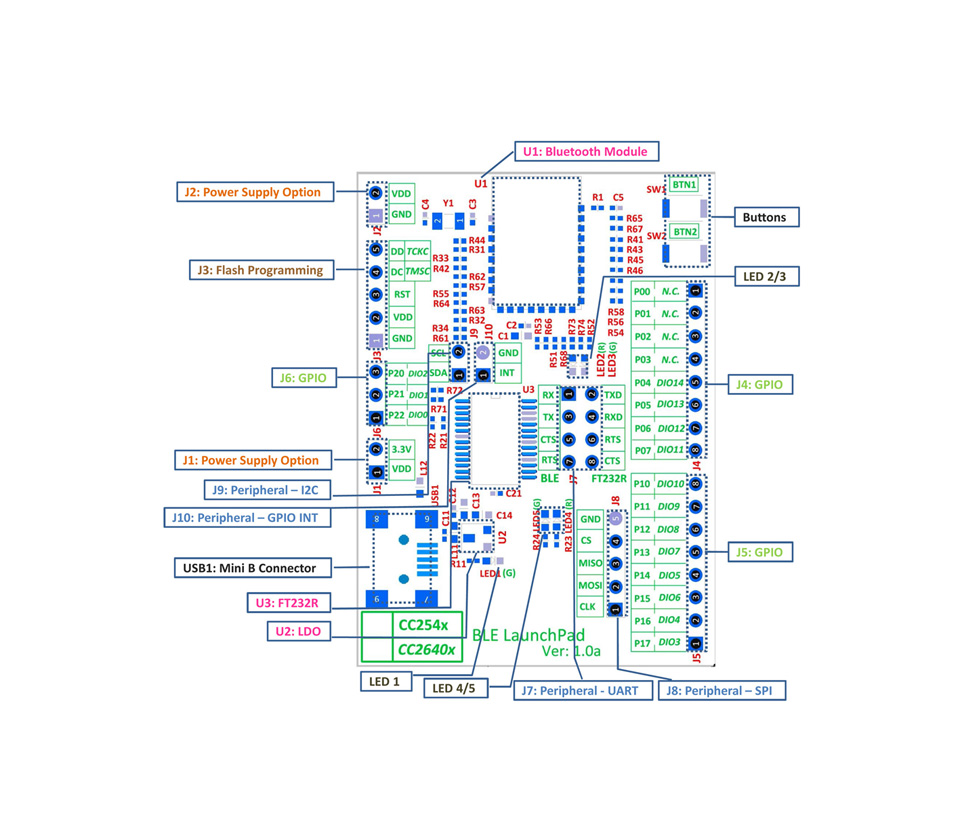

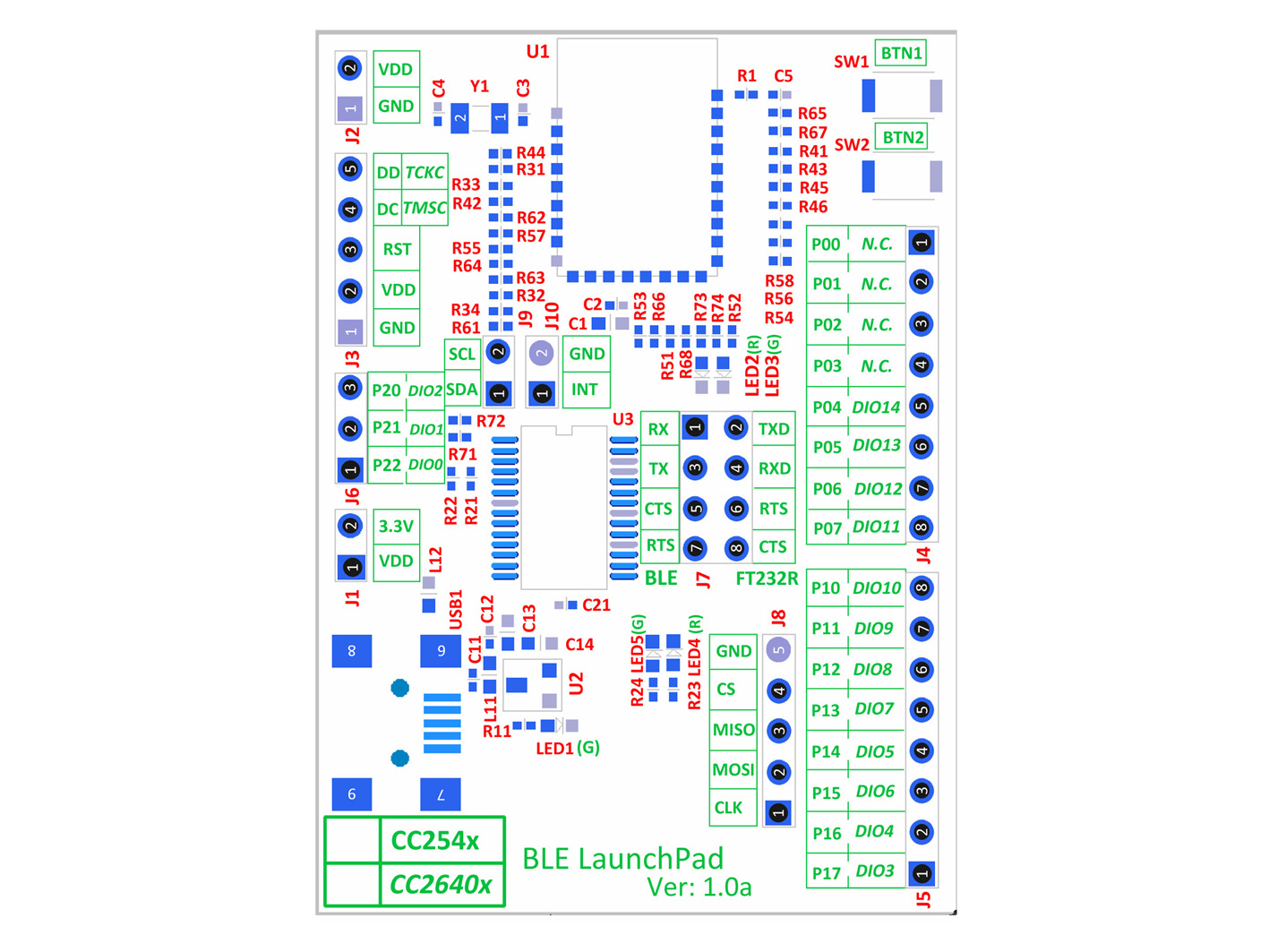

    Variety of Individual Pin Header Sections
    • Power Source Option
    • General Purpose I/O (GPIO)
    • Peripherals
    • Flash programming and debugging

    Buttons and LEDs
    • Input / output function control
    LaunchPad Dimension
    • 2.17 inch x 1.57 inch / 55 mm x 40 mm
