Bluetooth 4. 0 Low Energy BT01-2 Module (CC2541)

  • Bluetooth 4. 0 Low Energy BT01-2 Module (CC2541)
    UPC : 698545366028
    EAN : 0698545366028

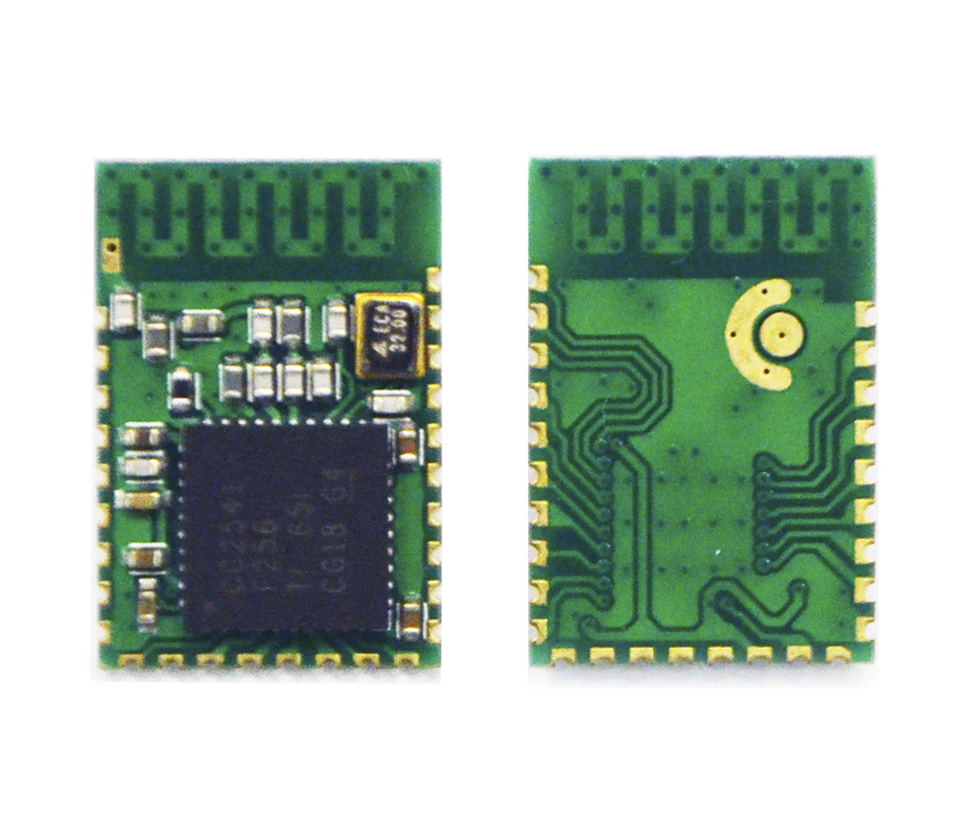

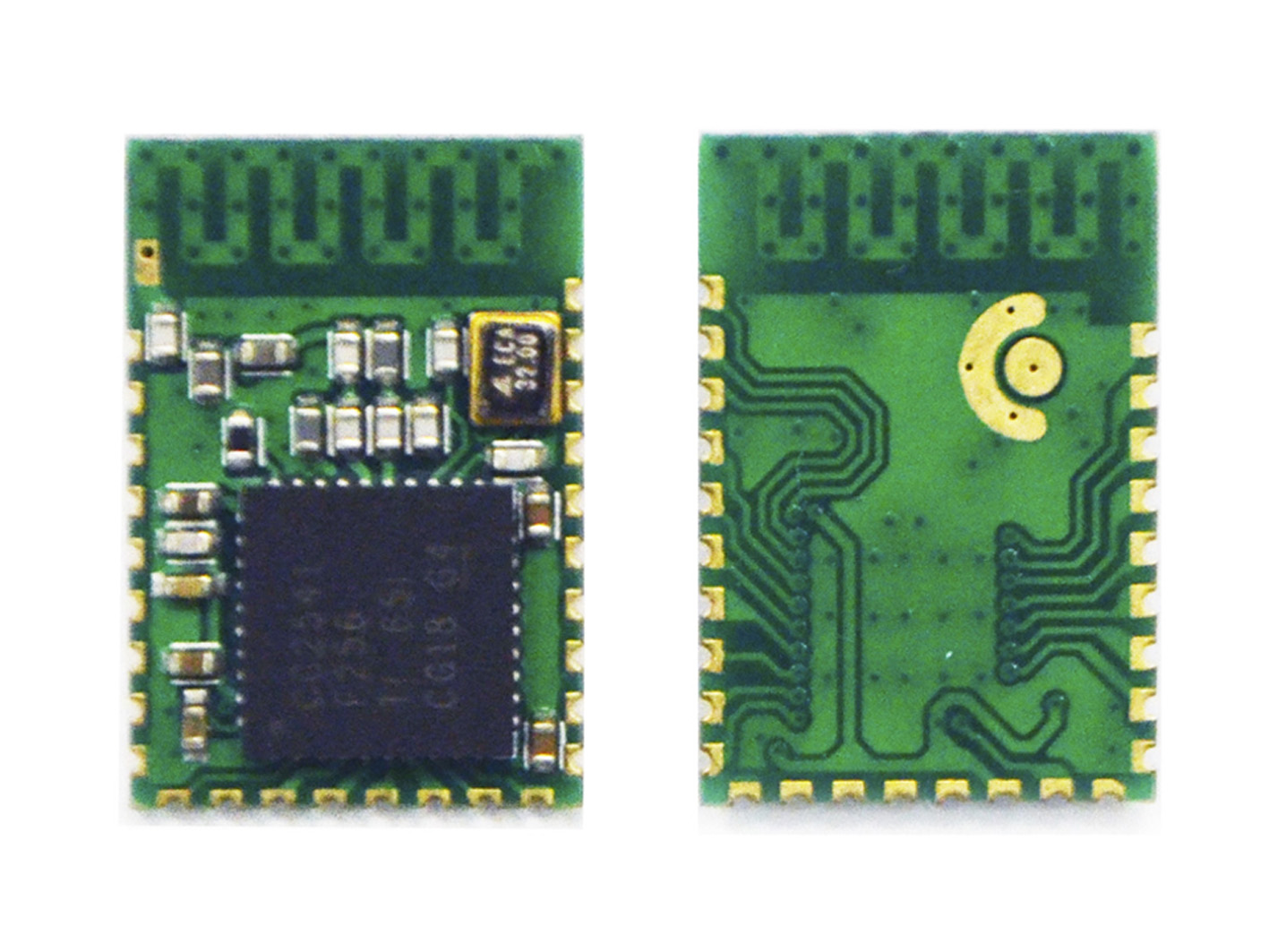

    Bluetooth low energy (LE) Module BT01-2 is a TI Bluetooth low energy controller CC2541. This module is ideal for low power wireless sensing device applications including mobile phone accessories, sports, consumer electronics, HID and etc. The module is integrated with PCB antenna and crystal to reduce the external BOM Cost.

    Product Information
    • Bluetooth Version 4.0 low energy (LE, Single Mode) compliant.
    • High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch. In-System-Programmable Flash.
    • 12-Bit ADC With Eight Channels and Configurable Resolution. 21 general purpose I/O
    • I2C Interface
    • Two Powerful USARTs with Support for Several Serial Protocols. On board PCB antenna and crystal
    • Excellent Receiver Sensitivity.

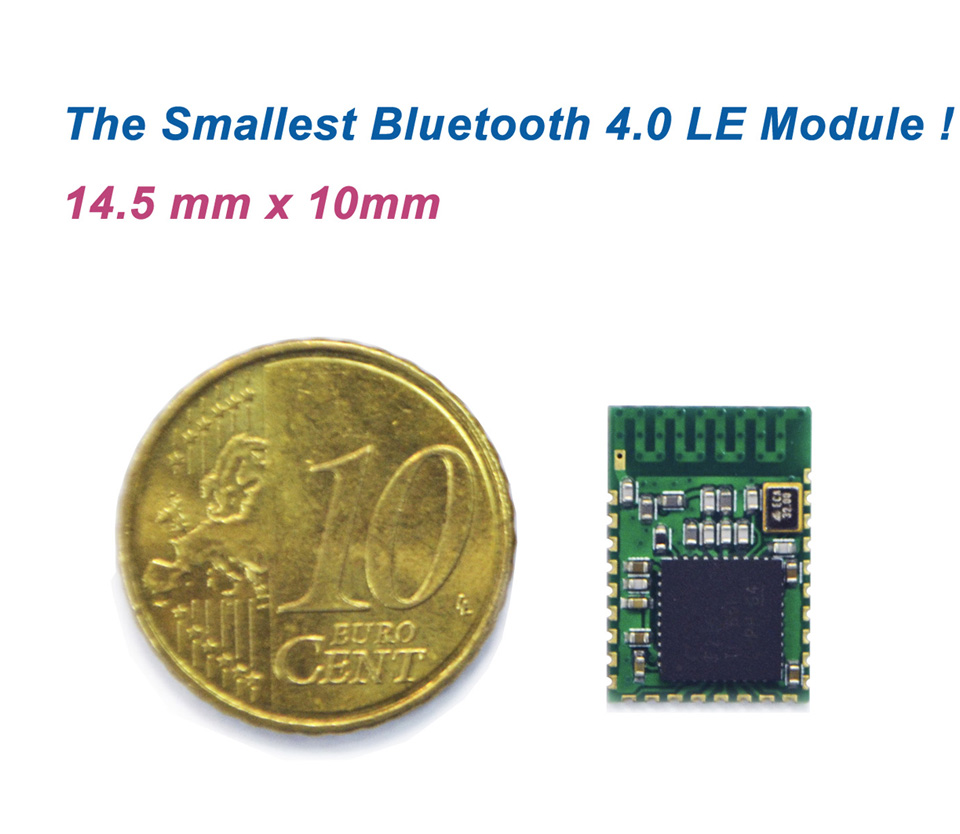

    • Module dimension: 0.58 inch x 0.39 inch/ 14.8 x 10mm, FR4 PCB
    • 2.4 GHz Bluetooth Version 4.0 low energy system
    • Applications for Mobile device accessories, Sports and leisure equipment, Health care and Medical, and etc.

    • Module dimension: 0.58 inch x 0.39 inch/ 14.8 x 10mm, FR4 PCB
